Safe Distance Explosion Proof Equipment Electric Manipulator 0~320 Mm Claw

    Buy cheap Safe Distance Explosion Proof Equipment Electric Manipulator 0~320 Mm Claw from wholesalers

    Buy cheap Safe Distance Explosion Proof Equipment Electric Manipulator 0~320 Mm Claw from wholesalers
    • Buy cheap Safe Distance Explosion Proof Equipment Electric Manipulator 0~320 Mm Claw from wholesalers

    Safe Distance Explosion Proof Equipment Electric Manipulator 0~320 Mm Claw

    Ask Lasest Price
    Brand Name : FDT
    Model Number : 38JTQ
    Certification : CE,ROHS,FCC,ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000 units per month
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    Safe Distance Explosion Proof Equipment Electric Manipulator 0~320 Mm Claw

    Safe Distance Explosion Proof Equipment Electric Manipulator 0~320 Mm Claw


    Quick Detail:

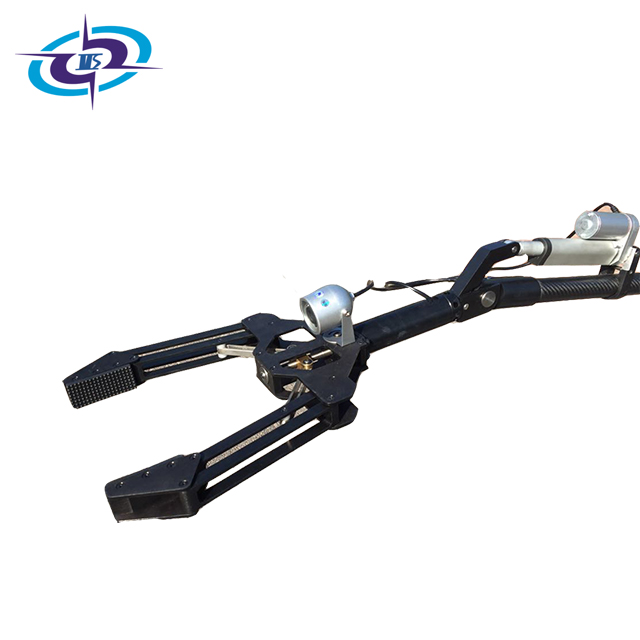

    Electric manipulator is used to grab suspicious explosive objects at a certain safe distance and carry out short distance moving special tools. Recommended for use with the JB301 explosion-proof shield, which can reduce the damage of shock and debris to the human body..


    Specifications:


    Grip parameters

    ItemParameterRemarks
    Claw0~320 mmPlain/Claw
    Fork100 mm×150 mm
    Clip HookFor Hook & Shear

    Multi - throttle lever parameters

    ItemParameterRemarks
    Single nodeLength:1000 mmBuilt in 8-core cable
    Adjusting RangeLength:1000 mm ~6000 mmBuilt in 8-core cable

    Electric adjusting bracket parameters

    ItemParameterRemarks
    Height adjustable rangeHeight:800mm~1500mm12v electric

    Monitor and camera parameters

    ItemParameterRemarks
    Screen Size7 inch
    Camera Size50mmWaterproof
    Resolution Ratio1200
    ConnectorAnalog quantity AV interface

    Weight

    ItemParameterRemarks
    Lifting Capacity3 kgTest 5Kg
    Counter Weights7.5 kg
    Total Weights25 kg
