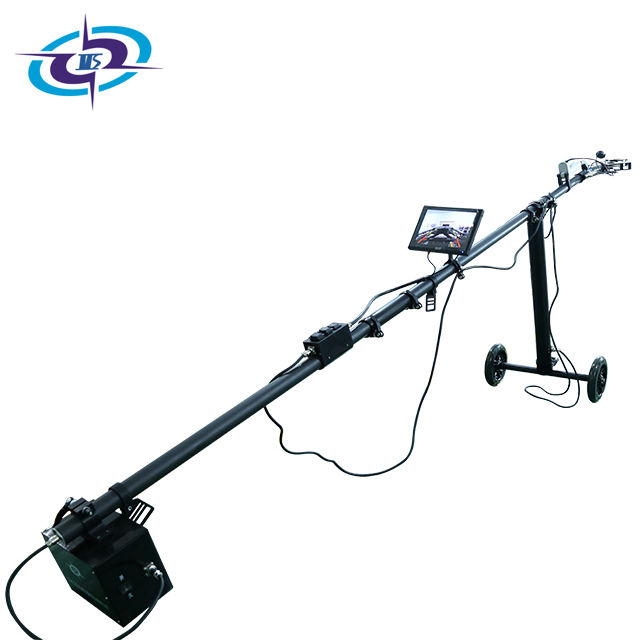

High Performance Electric Tower Manipulator , Robotic Arm
Manipulator
Electric Tower Manipulator Specifications:
Grip parameters
| Item | Parameter | Remarks |
| Claw | 0～320 mm | Plain/Claw |
| Fork | 100 mm×150 mm | |
| Clip Hook | For Hook & Shear | |
Multi - throttle lever parameters
| Item | Parameter | Remarks |
| Single node | Length:1000 mm | Built in 8-core cable |
| Adjusting Range | Length:1000 mm ～6000 mm | Built in 8-core cable |
Electric adjusting bracket parameters
| Item | Parameter | Remarks |
| Height adjustable range | Height:800mm～1500mm | 12v electric |
Monitor and camera parameters
| Item | Parameter | Remarks |
| Screen Size | 7 inch | |
| Camera Size | 50mm | Waterproof |
| Resolution Ratio | 1200 | |
| Connector | Analog quantity AV interface | |
Weight
| Item | Parameter | Remarks |
| Lifting Capacity | 3 kg | Test 5Kg |
| Counter Weights | 7.5 kg | |
| Total Weights | 25 kg | |
SHANGHAI FJADE DETECTION TECHNOLOGY CO.,LTD
Established in 2016 with registered capital of 30 million;
In November 2016, the first single source prototype 10080 was
successfully debugged.
In January 2017, 4 5030C, 6550 products were put into use by
Shanghai Two Committees. The users came from civil aviation airport
personnel. The equipment operated steadily for 18 days, making it
the first show of the company's security inspection aircraft.
February 2017, the company's products were sold to Xinjiang Urumqi
Railway Bureau, Xinjiang market opened;
In July 2017, Shanghai Fjade Security Inspection Machine entered
the international market.
In December 2017, the company's dual light source 6550 research and
development successfully completed the entire series of security
inspection machine research and development, to achieve continuous
research and development and innovation!
