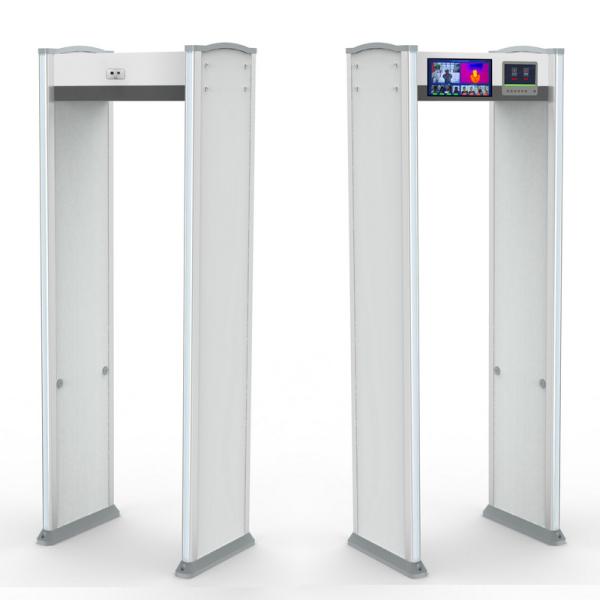

Thermal Imaging Temperature Measuring Walk Through Metal Detector ,
Specially Customized For Covid-19
Quick Detail:
WT-100IT is designed to detect the extremely small metals(≥ 6 grams
Metal) hidden on the human body such as razor blades, paper clips,
electronic chip etc and also has the function of detecting body temperature.
Applications:
This kind of metal detector is widely used in airport, railway
station, subway station, supermarket, school, exhibition, hospital,
government unit, company and factory etc.
Specifications:
| Power Supply: | AC 85~240V 50/60Hz |
| Power: | 30W, low radiation. |
| Frequency: | 100 frequency bands, self-adaption when boot. |
| Working environment: | -20-60℃ |
| Partition function: | 6/12/18/33(36) can be randomly divided to accurately determine the
location of the location of metal objects. |
| Sensitivity adjustment range: | 1000 levels sensitivity adjustable,0~999 level |
| Alarm function: | alarm light, alarm sound, adjustment settings |
Vertical dimensions: | 2230mm (height) × 835mm (width) × 480mm (depth) |
Vertical channel size: | 1990mm (height) × 700mm (width) × 400mm (depth) |
Product weight: | 59KG |
Packed weight: | 67KG |
| Sensitivity self-adaptive: | can identify the sensitivity according to person carried metal on
when pass the walk through metal detector |
| Recognition function: | use LED side diffusion display mode to inform the security staff of
the metal objects size. |
Temperature measurement time: | less than 0.1s |
Temperature resolution: | 0.02℃ |
Temperature accuracy: | ±0.2℃ |
Temperature measurement distance: | 0.3-0.5 meters |
Competitive Advantage: Temperature Measurement
1. Sensor type: uncooled detector
2. Temperature measurement method: infrared thermal imaging
3. Fast screening: real-time detection
4. Non-contact and non-sensing temperature measurement: the
measured person can pass through without any obstacles, without
stopping or raising head etc.
5. Alarm prompt: sound alarm
6. Thermal imaging size: 256*192
7. Pixel size: 12μm
8. Thermal imaging field of view: 50o*35.2o
9. Temperature accuracy: ±0.3℃
10. Temperature measurement distance: 1-5 meters
11. Temperature measurement range: 30-50℃
12. Display: 12-inch large screen real-time display through
personnel temperature, face capture, numbers etc.
Competitive Advantage: Metal Detection
1. Multi-defense zone technology: 18 detection zones, the
sensitivity of each detection zone can be adjusted (with adaptive
adjustment technology), and there is a high-brightness LED alarm
position indicator to accurately locate the hidden contraband
2. Large screen technology: 7-inch operating LCD screen, the
operation is more simple and easy to understand
3. Detection object: can detect magnetic, non-magnetic and alloy
metals
4. Superior shell protection technology: IP55 superior protection
performance
5. Alarm data statistics: equipped with intelligent passenger flow
and alarm counters, real-time automatic display of the number of
alarms and the number of people entering and exiting, 100,000
records of large capacity information are convenient for real-time
review
6. Alarm function: alarm light, alarm sound, adjustment settings
